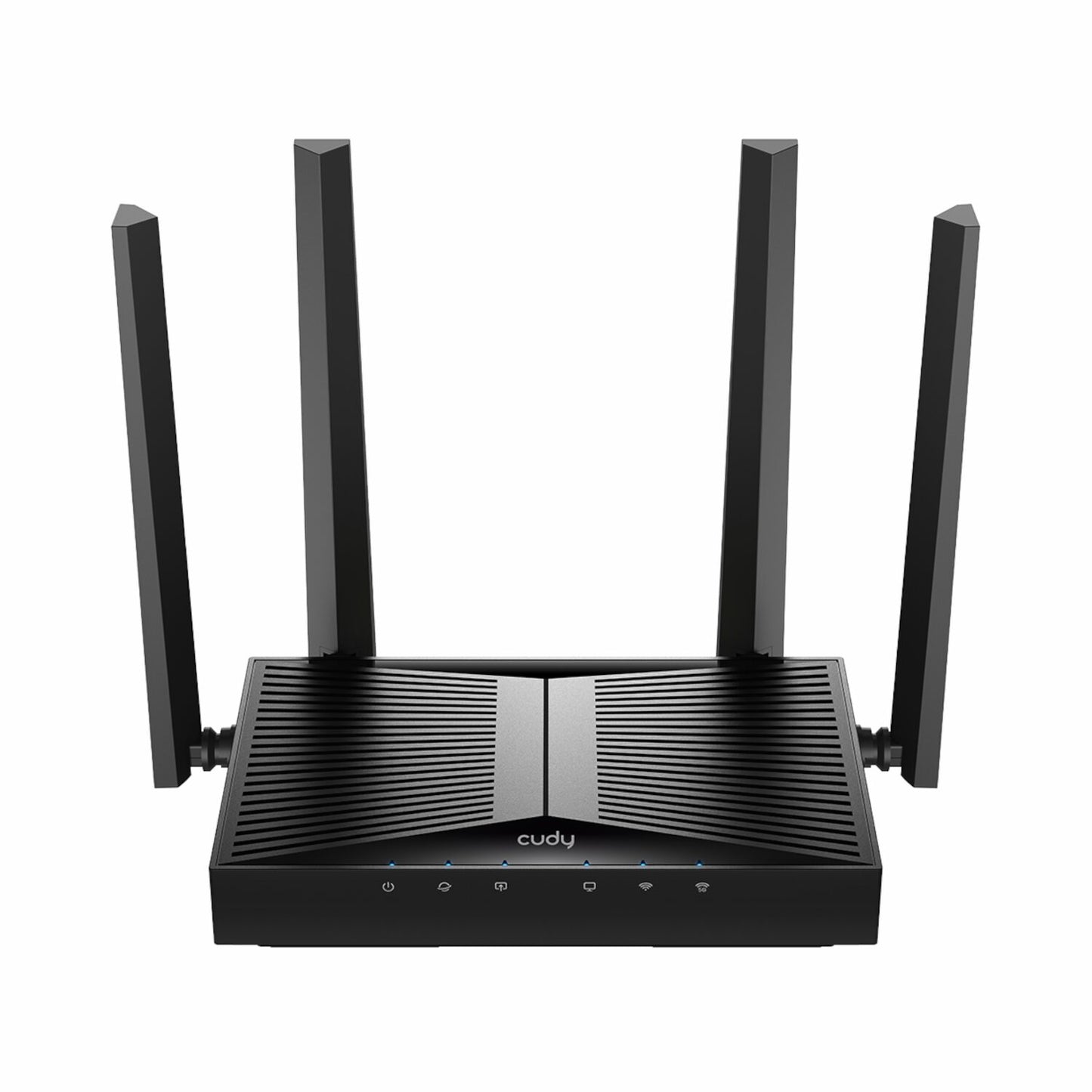

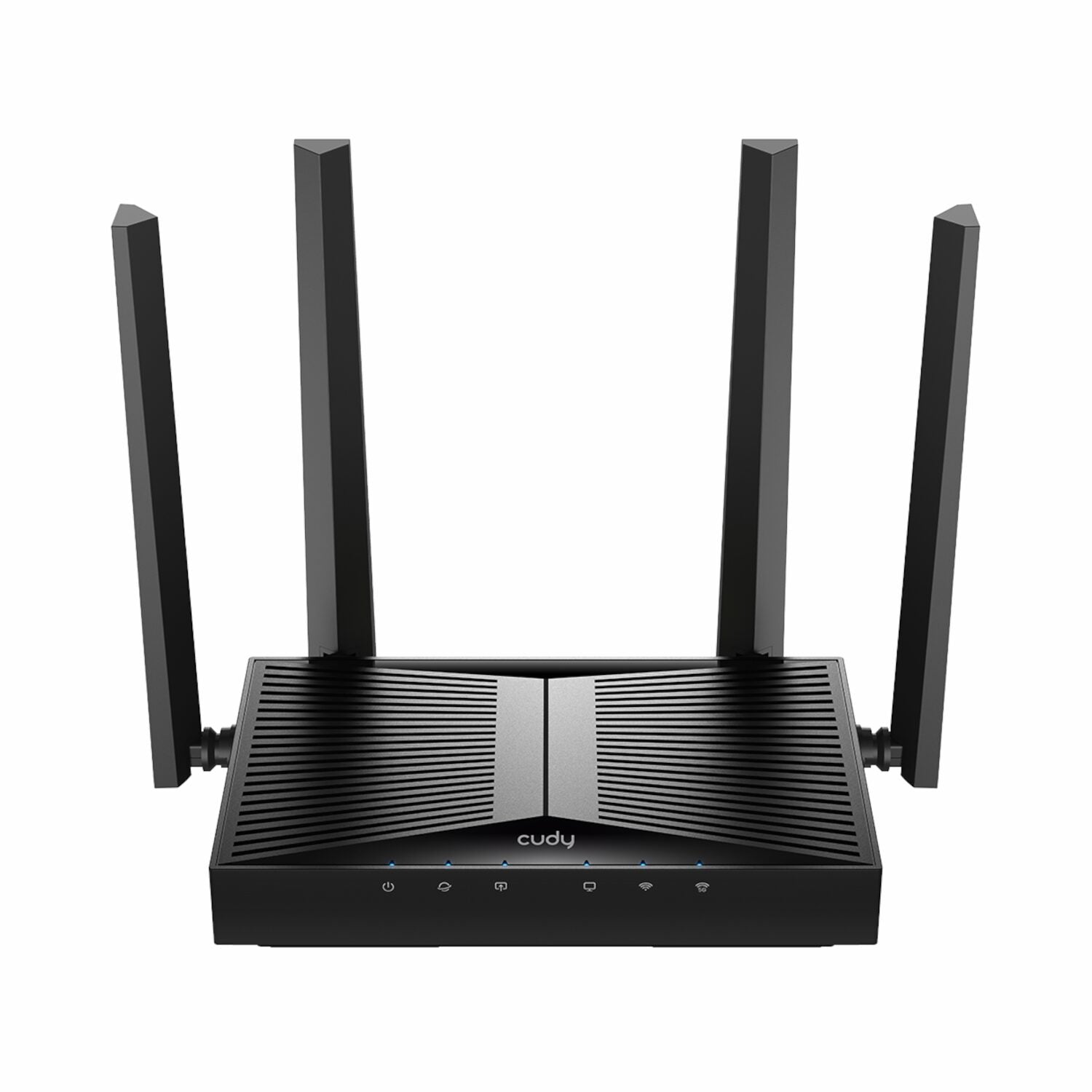

Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600)

The Cudy BE3600 Gigabit Wi-Fi 7 Router marks a bold leap into the future of wireless networking. Engineered for modern digital demands, this high-performance router delivers blazing-fast speeds, unparalleled device capacity, and next-gen efficiency—all within a sleek, dual-purpose form factor suitable for both desktop and wall-mounted installations.

Harnessing the power of Wi-Fi 7 (802.11be), the Cudy BE3600 Gigabit Wi-Fi 7 Router pushes throughput up to 3570 Mbps, powered by advanced features like Multi-Link Operation (MLO), 160 MHz channel width, and 4K-QAM modulation. Whether streaming in 4K, dominating online multiplayer games, or managing a fully connected smart home, the Cudy BE3600 Gigabit Wi-Fi 7 Router ensures low latency, consistent bandwidth, and rock-solid connectivity.

At its core is a robust 2.0 GHz quad-core Broadcom ARM Cortex-A7 CPU, paired with 512 MB RAM and 128 MB flash memory, providing the muscle needed for simultaneous high-load tasks. With support for up to 512 devices, it's built for the bandwidth-hungry home or office.

The Cudy BE3600 Gigabit Wi-Fi 7 Router also goes beyond performance. It’s a comprehensive network management hub with QoS, guest networks, VPN server/client options, and powerful parental controls. Advanced diagnostics, secure remote access, and compatibility with leading DNS providers give you full control from anywhere.

In short, this is not just another wireless router. The Cudy BE3600 Gigabit Wi-Fi 7 Router is your home’s digital command centre—future-ready, gamer-approved, and streaming-optimised.

FEATURES:

• Wi-Fi 7 speeds up to 3570 Mbps with 160 MHz channels
• Multi-Link Operation (MLO) for ultra-low latency and seamless handoffs
• 2.0 GHz quad-core processor ensures fast, stable performance
• Connect up to 512 devices across dual bands
• MU-MIMO and OFDMA for efficient multi-user throughput
• Active beamforming with high-gain fixed antennas for wider coverage
• Full suite of VPN protocols, including WireGuard and OpenVPN
• WPA3 security and guest network options enhance data protection
• Gigabit Ethernet ports (1 WAN + 4 LAN) for wired flexibility
• Desktop and wall-mountable design with intuitive app and web UI

SPECIFICATIONS:

Performance

• Wi-Fi Standard_ IEEE 802.11be (Wi-Fi 7)
• Total Bandwidth_ Up to 3570 Mbps
  • 5 GHz_ 2882 Mbps
  • 2.4 GHz_ 688 Mbps
• Coverage: Up to 130 m²
• Maximum Range_ 220 m
• Max Devices_ 512 (Recommended: up to 200)

Hardware

• CPU: 2.0 GHz Quad-Core Broadcom ARM Cortex-A7
• RAM: 512 MB DDR3L
• Flash: 128 MB NAND
• Antennas: 4× Fixed High-Gain Antennas
  • 5 GHz_ Max 5.5 dBi
  • 2.4 GHz_ Max 5.4 dBi

Connectivity & Ports

• RJ45 Gigabit Ports_ 5 (1 WAN + 4 LAN)
• Power Supply_ 12V/1A DC
• Max Power_ 9W
• Buttons: WPS, Reset
• LED Indicators_ Power, Internet, WAN, LAN, 2.4 GHz, 5 GHz

Wireless & Network Features

• Wi-Fi Efficiency_ MU-MIMO, OFDMA, BSS Colour, Preamble Puncturing
• Security: WPA/WPA2/WPA3
• VPN Support_ WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier
• Guest Network_ Separate 2.4 GHz & 5 GHz
• Operation Modes_ Router, Access Point (future: Extender, WISP, Client)
• QoS: Per-user rate limiting
• IP Versions_ IPv4/IPv6 Support
• VLAN, IPTV, IGMP, Port Forwarding, DMZ
• Application Layer Gateway_ IPSec, FTP, SIP, etc.

Management

• Local Control Method_ Cudy App & Web Interface (Local & Remote)
• Firmware Updates_ OTA, Web UI
• Diagnostics: Ping, Traceroute, NSLookup
• Parental Controls_ Domain/IP Filtering, Time Scheduling
• DNS Options_ DNS over TLS, Rebind Protection
• Supported Providers_ Cloudflare, Google, Quad9

Physical & Environmental

• Dimensions: 18.33 × 10.9 × 3.8 cm
• Antenna Length_ 17.5 cm
• Weight: 333.5 g
• Install: Desktop / Wall-mount
• Operating Temp_ 0 ℃ to 40 ℃
• Storage Temp_ -40 ℃ to 70 ℃
• Humidity: 10%–90% operating, 5%–95% storage
• Certifications: FCC, CE

WHAT'S IN THE BOX_

• Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600) x1
• Power Adapter (12V/1A DC) x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1
